One of the world’s smallest full-featured lubrication systems

The SKF Compact Greaser is an electric cartridge pump designed for reliable lubrication of linear guides, ball screws and rolling bearings. It delivers precise lubricant metering to enhance component performance and extend service life.

Its compact, lightweight design makes installation easy, even in tight spaces or on moving machine parts. The unit is PLC‑controlled, requiring no separate power supply or circuit protection. Designed for NLGI grade 1 and 2 greases, it supports up to five outlets with metering options from 10 to 40 mm³ per stroke. Both the number of outlets and metering rates can be customized when ordering. A bayonet lock ensures quick and simple cartridge replacement. Integration via Profibus, Profinet or ASi enables reliable monitoring and control.

Cleanroom suitability

Tested and certified by the Fraunhofer IPA according to ISO 14644‑1, the SKF Compact Greaser is suitable for use in dry cleanrooms up to Air Cleanliness Class 1—the highest ISO grade—under specified conditions (22 ±1 °C; dew point –40 ±2 °C).

1. Very small full-featured lubrication system
2. Several reliable control and monitoring options
3. (incl. Profinet, Profibus and ASi)
4. Quick and easy cartridge change
5. Standard and customer greases
6. Easy to install and customize
7. 2–5 lubricant outlets
8. Tested and certified for use in clean and dry areas (Air Cleanliness Class 1)

1. Clean room manufacturing such as battery or chip production
2. Automation
3. Linear robots and guides
4. Machine tools
5. Medical devices
6. Textile machines
7. Printing machines
8. Packaging machines
9. Woodworking machines

Automatic Electric Cartridge Pump (AECP) for use in small progressive lubrication systems

The new compact cartridge pump combines the best of manual and automatic lubrication. The AECP utilizes standard grease tubes, making refilling an autolube system as easy as refilling a grease gun. It does not require any special refilling tool or equipment. In addition, using cartridges allows for a wide range of lubricants.

The pump fits into tight spaces thanks to its small footprint and flexible mounting options. The AECP is very robust and withstands harsh working environments and working conditions. Paired with SSV progressive metering devices, the AECP is the heart of a simple-to-operate automatic lubrication system. All lubrication points are supplied reliably when the machine is running. The tube capacity is sufficient for at least one machine working day.

The built-in low-level sensor provides an early warning to replace the cartridge. The AECP can be operated with a controller if more advanced monitoring options are required.

SKF lubricants in 400ml cartridges are the perfect pairing for the AECP.

Features & benefits

1. Increases equipment availability and reliability
2. Simplifies machine maintenance
3. Easy to retrofit
4. Compact footprint fits into tight spaces
5. Robust design withstands harsh working environment

Applications

1. Ideal for small machine applications, where a tube can do
2. Dozers and loaders
3. Farm machinery like balers
4. Municipal equipment

Technical Data

Function principle: Electrically operated lubrication pump.

Lubricant: Greases NLGI 1 to NLGI 2.

Cartridge volume: Standard 14.1 oz (400 ml).

Working pressure: 3600 psi (248 bar).

Back pressure: 800–1000 psi (55–69 bar).

Operating temperature: −40 to +150°F (−40 to +65°C).

Number of pump elements: 1.

Lubricant output: 0.366 in³/min (6 cm³/min).

IP-protection class: IP 6K9K.

Voltage: 12 V DC.

Operating current: 10 or 20 A.

Outlet connection: G1/4.

Mounting position: Any.

Dimensions (max. H × D × W): 16 × 7.5 × 3.5 in (406 × 190 × 89 mm).

Weight (empty): 4.6 lb (2.08 kg).

Order Information

Part number: 90010-00*

Description: AECP pump, 12 V DC

Part number: 280521

Description: Mounting bracket

Selected SKF Greases

Part number: LGMT 2/0.4

Description: General purpose grease, 420 ml cartridge

Part number: LGEP 2/0.4

Description: High load, extreme pressure grease, 420 ml cartridge

Part number: LGNL 2/0.4

Description: General purpose, high load grease, 420 ml cartridge

Part number: LGGB 2/0.4

Description: Biodegradable grease, 420 ml cartridge

*The AECP is available for purchase in North America.

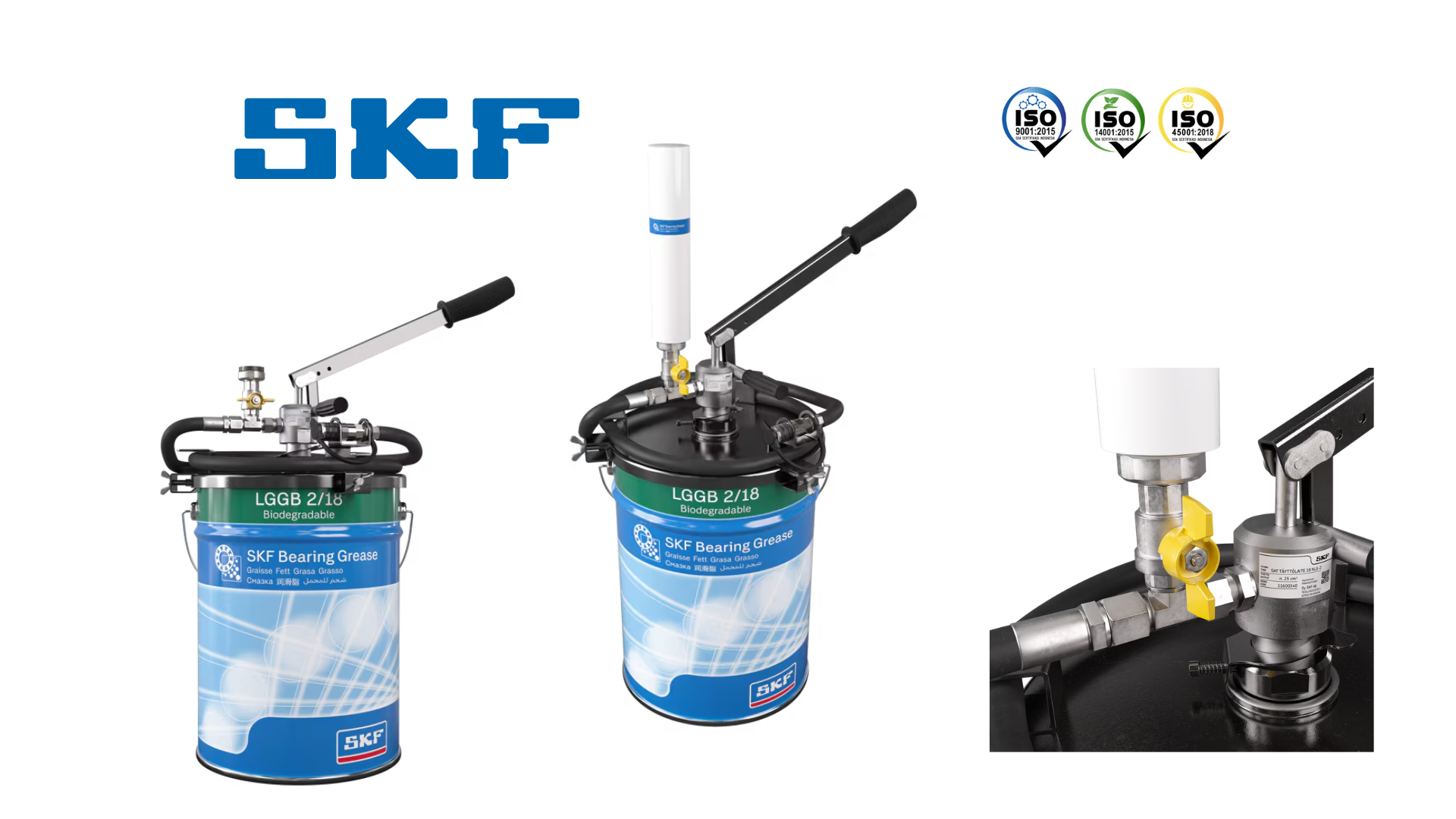

Clean refilling of lubrication pumps and lubricant cartridges

The MFP is a manual refilling pump specifically designed for applications with NLGI grade 0 to 2 greases. It is intended for use with 18 kg barrels or buckets with or without follower plate. Follower plate is essential to ensure reliable suction and optimal emptying of the barrel while using hard greases. This pump is fitted with a 2-metre long high-pressure hose that features a quick coupling female connector compatible with SKF filling filter often found in SKF Lincoln automatic lubrication system pumps. Additionally, an adaptor for filling Lube-Shuttle cartridges is available as an option. The MFP dispenses a volume of 25 cm³ per stroke and operates at pressures of up to 60 bar. Two versions of the MFP are available, each tailored for different NLGI grades of lubricants. This market-proven solution, tested under the harsh conditions of Nordic winters, is noted for its high reliability, durability, and ease of use.

Features & benefits

1. Market proven design
2. Fast to install and easy to use
3. Most reliable also under harsh condition
4. Fluid grease and grease design versions available

Applications

1. MMPC machinery
2. Forestry machines
3. Construction vehicles
4. Utility service vehicles
5. Breakers and hammers
6. Lifting and telehandlers
7. Agriculture vehicles,
8. machines, attachments

Technical Data

Order Informaation

SKF LGCC 2 is a general purpose grease specially engineered to deliver superior performance in a wide range of lubrication systems, particularly excelling in environments with very low temperatures. Its advanced formulation ensures exceptional water resistance and robust corrosion protection, making it ideal for demanding non-rolling bearing applications.

Features & benefits

1. Outstanding low-temperature performance
2. Excellent water resistance
3. Enhanced corrosion protection

Typical applications

1. Lubrication systems exposed to low to medium temperatures
2. Construction machinery
3. Forestry and agricultural equipment
4. Collector trucks
5. Chassis applications
6. Hinges, Joints, articulations and linkages
7. Slow rotating sliding bearings and bushings

Available Pack Size

Technical Data
