Mobile Foam Trolley kami merupakan unit pemadam kebakaran portabel yang dirancang untuk memberikan respons cepat terhadap kebakaran yang melibatkan cairan mudah terbakar (Class B Fire). Dilengkapi dengan foam concentrate tank, foam proportioner, fire hose, branch pipe, dan sistem distribusi busa yang terintegrasi, unit ini mampu menghasilkan pemadaman yang efektif dan efisien pada kondisi darurat.

Dirancang dengan konstruksi yang kokoh namun mudah dipindahkan, Mobile Foam Trolley sangat ideal untuk digunakan pada kilang minyak, fasilitas minyak dan gas, pabrik petrokimia, terminal penyimpanan bahan bakar, fasilitas manufaktur, serta berbagai area industri yang memiliki risiko kebakaran akibat cairan mudah terbakar. Setiap unit dapat disesuaikan dengan kebutuhan kapasitas dan spesifikasi proyek.

Key Features

1. Compact and portable design for rapid emergency response
2. Suitable for Class B flammable liquid fire protection
3. Corrosion-resistant tank available in Fiberglass Reinforced Plastic (FRP) or Stainless Steel
4. Complete package including foam proportioner, fire hose, branch pipe, and foam concentrate tank
5. Equipped with heavy-duty rubber wheels for easy transportation
6. Ready for immediate operation with hydrant or fire water supply
7. Factory assembled and tested prior to delivery
8. UL Listed components for branch pipe, foam proportioner, and fire hose
9. FM Approved components available
10. Customizable capacity and configuration to meet project requirements

Available Configurations

1. Tank Capacity: 200 L & 500 L
2. Tank Material: FRP or Stainless Steel
3. Foam Concentration: 3% AFFF
4. Fire Hose: 2.5" × 15 m or 2.5" × 30 m
5. Foam Proportioner Flow Rate: 59 GPM or 119 GPM
6. Working Pressure: 100 PSI
7. Pressure Range: 80–200 PSI

Typical Applications

1. Oil & Gas Facilities
2. Refineries
3. Petrochemical Plants
4. Fuel Storage Terminals
5. Chemical Processing Plants
6. Manufacturing Facilities
7. Industrial Fire Protection Systems

Linear Heat Detector (LHD) kami merupakan solusi deteksi kebakaran berbasis kabel yang dirancang untuk mendeteksi panas secara kontinu di sepanjang seluruh panjang kabel. Menggunakan teknologi advanced thermal polymer, sistem ini memberikan deteksi dini yang cepat dan andal ketika suhu mencapai batas yang telah ditentukan, sehingga sangat efektif untuk area yang tidak dapat dijangkau oleh detektor titik (point detector) konvensional.

Dengan lapisan luar yang tahan terhadap bahan kimia, abrasi, dan paparan sinar UV, Linear Heat Detector kami dirancang untuk memberikan performa optimal pada lingkungan industri yang menuntut keandalan tinggi. Sistem ini kompatibel dengan addressable maupun conventional fire alarm systems, menjadikannya solusi ideal untuk berbagai aplikasi proteksi kebakaran di sektor industri.

Key Features

1. Continuous heat detection along the entire cable length
2. Advanced thermal polymer technology for fast and reliable fire detection
3. Compatible with addressable and conventional fire alarm systems
4. Chemical, UV, and abrasion-resistant outer jacket
5. Low resistance cable for stable and reliable signal transmission
6. Multiple alarm temperature ratings available (68°C, 78°C, 88°C, 105°C, 185°C, and 235°C)
7. Flexible installation for complex industrial environments
8. Optional distance locating system for accurate alarm location identification
9. FM Approved and CSFM Listed

Technical Specifications

1. Cable Diameter: 3.2 mm (1/8")
2. Operating Voltage: 30 VAC / 42 VDC
3. Operating Temperature: -60°C up to selected alarm temperature
4. Minimum Bend Radius: 76 mm
5. Outer Jacket Options: PVC, Nylon, Polypropylene, GuideWire
6. Resistance: 0.05 Ω/ft (0.164 Ω/m)

Typical Applications

1. Cable Trays & Cable Tunnels
2. Conveyor Systems
3. Electrical Panels & Switchgear
4. Warehouses & Storage Facilities
5. Parking Structures
6. Cooling Towers
7. Oil & Gas Facilities
8. Aircraft Hangars

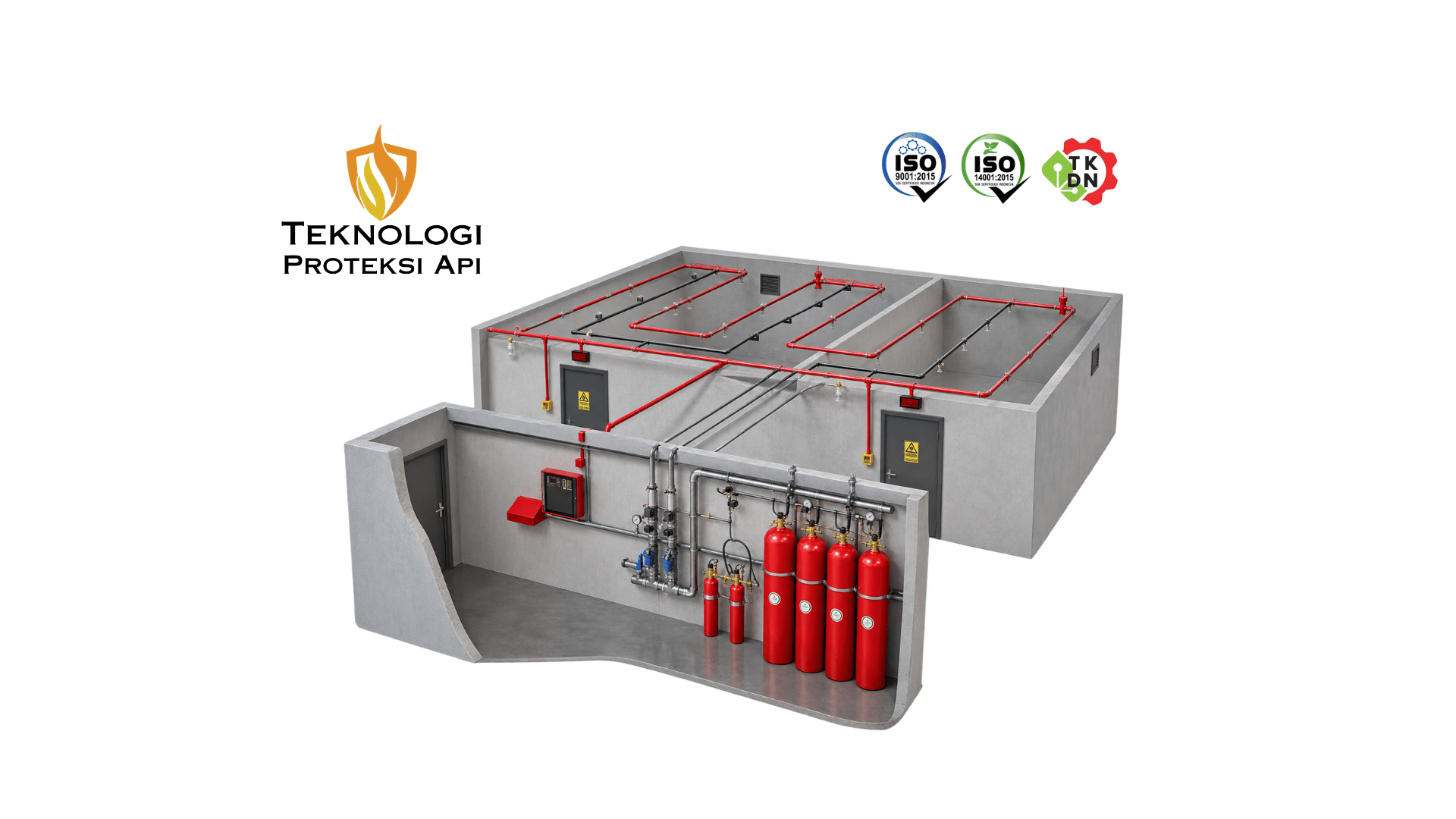

Fire Suppression System kami merupakan sistem pemadaman kebakaran yang dirancang untuk melindungi area, equipment, dan fasilitas dari risiko kebakaran. Sistem ini mengintegrasikan perangkat deteksi, kontrol, dan pemadaman untuk memberikan respons yang cepat dan terkontrol sesuai dengan kebutuhan aplikasi.

Dengan konfigurasi yang dapat disesuaikan berdasarkan jenis risiko, area perlindungan, karakteristik equipment, dan media pemadam, Fire Suppression System kami dapat digunakan untuk berbagai fasilitas industri, termasuk oil & gas, manufacturing, power generation, dan fasilitas komersial.

Key Features

1. Rapid fire suppression capability
2. Designed for equipment and area protection
3. Automatic or manual activation based on system configuration
4. Integrated fire detection and suppression control
5. Flexible configuration based on application requirements
6. Available with various fire suppression agents
7. Suitable for localized and area protection
8. Supports integration with fire alarm and safety systems
9. Configurable for critical equipment and facilities
10. Suitable for industrial fire protection applications

Main Components

1. Fire Suppression Control Panel
2. Fire Detection Device
3. Suppression Agent Cylinder / Container
4. Release Valve
5. Discharge Nozzle
6. Detection System
7. Manual Release Station
8. Alarm and Indication Device
9. Piping / Tubing System
10. Pressure Monitoring Device

System Types

1. Clean Agent Fire Suppression System
2. CO₂ Fire Suppression System
3. Dry Chemical Fire Suppression System
4. Foam Fire Suppression System
5. Water-Based Fire Suppression System
6. Automatic Fire Suppression System
7. Localized Fire Suppression System

Technical Specifications

System Type: Based on application

Suppression Agent: Based on system configuration

Protected Area: Based on project requirements

Agent Capacity: Based on design requirements

Operating Pressure: Based on system configuration

Activation: Automatic / Manual, based on configuration

Detection: Based on system configuration

Discharge Method: Based on system configuration

Discharge Nozzle: Based on design requirements

Control Panel: Based on system configuration

Piping / Tubing: Based on design requirements

Alarm Interface: Based on configuration

Power Supply: Based on system requirements

Operating Temperature: Based on specification

Installation: Indoor / Outdoor, based on configuration

Typical Applications

1. Oil & Gas Facilities
2. Manufacturing Plants
3. Electrical Rooms
4. Control Rooms
5. Generator Rooms
6. Machinery and Equipment Areas
7. Process Facilities
8. Data and Equipment Rooms
9. Warehouse and Storage Areas
10. Industrial Infrastructure
